Description
Features:
- Need something small for your next project? The VIPER 135 is a multi-process machine, capable of MIG, TIG and STICK welding, plus it comes set with synergic programs, it’s perfect for small repairs and home DIY. Weighing only 5.2kg and with a 10amp plug, so you can take it anywhere.
Specs:
PRIMARY INPUT VOLTAGE: 240V Single Phase
SUPPLY PLUG: 10 AMP
Ieff (A): 8.4
RATED OUTPUT: 40/16V-135A/21V
NO LOAD VOLTAGE (V): 68
PROTECTION CLASS: IP21S
INSULATION CLASS: H
DINSE CONNECTOR: 10/25
STANDARD: AS/NZ60974-1
WELDS: Mild Steel, Stainless Steel, Cast Iron, Silicon Bronze, Copper
WARRANTY (Years): 2
MIG WELDING CURRENT RANGE: 40-135A
MIG DUTY CYCLE @ 40°C: 15% @ 135A, 60% @ 65A, 100% @ 50A
MIG WIRE SIZE RANGE: 0.6-0.9mm
MIG WIRE SPOOL SIZE: 1kg
MIG WELDING THICKNESS RANGE: 1-6mm
TIG FUNCTION TYPE: DC Lift Arc
TIG WELDING CURRENT RANGE: 20-120A
TIG DUTY CYCLE @ 40°C: 15% @ 120A, 60% @ 60A, 100% @ 45A
TIG WELDING THICKNESS RANGE: 1-6mm
STICK WELDING CURRENT RANGE: 20-120A
STICK DUTY CYCLE @ 40°C: 15% @ 120A, 60% @ 60A, 100% @ 45A
STICK ELECTRODE RANGE: 2.5-3.2mm
STICK WELDING THICKNESS RANGE: 1-6mm
DIMENSIONS (mm): 353x132x250mm
WEIGHT (kg): 5.2kg
THERMAL OVERLOAD PROTECTION: Over Temperature Warning
Inclusions:

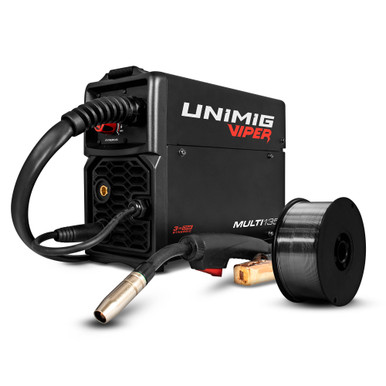

- VIPER MULTI 135 MIG/TIG/STICK Welder
- 2m Direct Connect MIG Torch
- 2m Earth Clamp & Lead
- Electrode Holder
- 2m Gas Hose Complete with fittings
- 1kg E71T-GS 0.8mm Gasless Wire
