Description

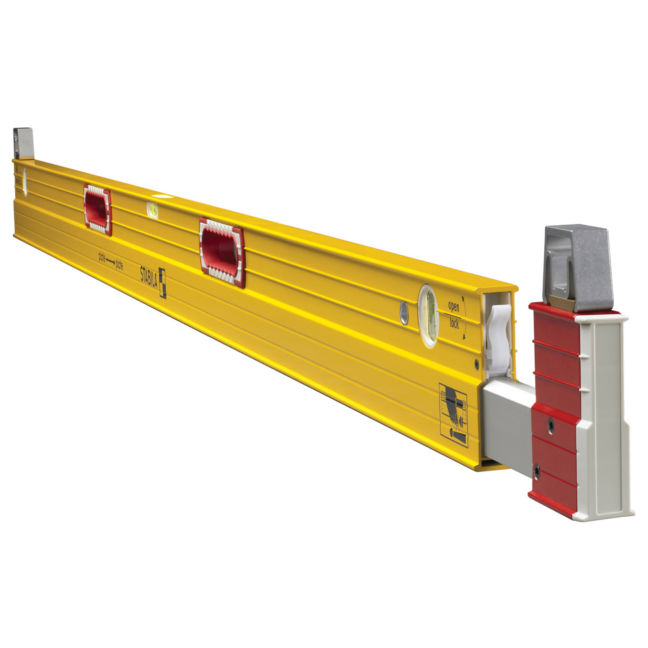

Stabila 35712 7ft to 12ft Type 106T Extendable Plate Level
Stabila 35712 7ft to 12ft Type 106T Extendable Plate Level:
Features:
- Product no. 35712
- 6 Sided keyed extension rail delivers smooth and rigid operation
- Vial features:
-
-
- 2 plumb vials
- 1 level vial
- Vial accuracy guaranteed for life never to leak, fog or need adjustment
- Top plumb vial permanently positioned at eye level
-
-
- Opposite side provides measuring surface and straight edge
- Positioning scale on both sides of the extension rail for FAST set-ups: : 9ft 1″, 10ft 1″, etc.
- Removable 1-5/8″ stand-offs included deliver accurate plate to plate measurements around braces
- Stand offs simply twist-on
- Reinforced frame
- Fully sealed Six-sided solid rail extension eliminates deflection and delivers smooth extension movement
- Reach around braces with removable 1-5/8″ stand-offs
- Frame on opposite side of the stand-offs is a straight edge and level measuring surface
- Scale on both sides of the extension allows fast set-ups
- Extend so tall walls, tall doors and big windows can be installed properly and quickly
- Strong reinforced frame
- Measuring surfaces are not machined
- Two hand grips
- Steel hang hole for storage
Specifications:
- Extendable range: 7ft to 12ft
- Measurement accuracy:
-
-
- Normal position: ±1/32″ @ 72″
- Reverse position: ±3/64″ @ 72″
- Extended normal position: ±1/8″ @ 120″
-
-
- Number of measuring surfaces: 2
- Profile: Reinforced 2 chamber profile
- End caps: Standard
- Weight: 10 lbs
Replacement parts and optional items – sold separately:
- 20065 Replacement End Caps
- 33100 Replacement Stand-Offs
- 33000 Plate Level Maintenance Kit
- 30035 Level Carrying Case
