Description

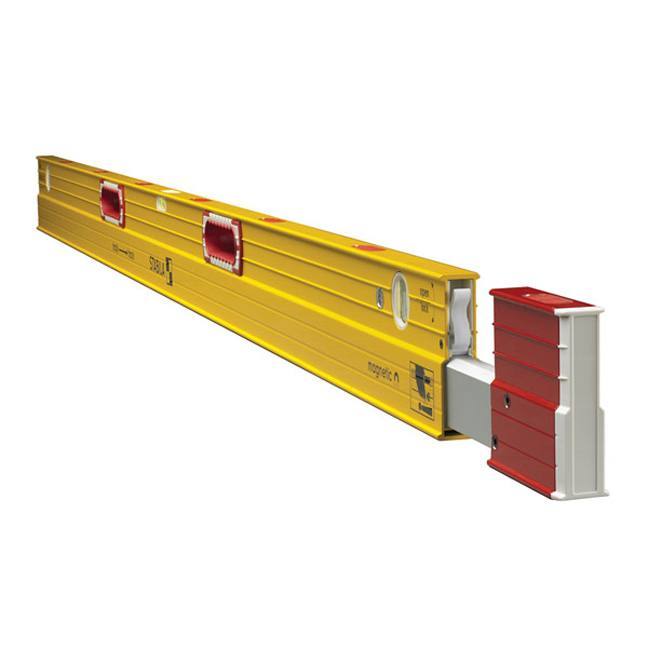

Stabila 34610 6ft to 10ft Type 106TM Magnetic Extendable Plate Level
Stabila 34610 6ft to 10ft Type 106TM Magnetic Extendable Plate Level:
Features:
- Catalog no. 34610
- Type: 106TM
- Collapsed Length: 72″
- Extends from 6 ft. to 10 ft.
- Magnetic 3-Chamber rectangular aluminum profile with reinforcing ribs
- Super strong magnets:
-
-
- Allow hands-free operation
- Horizontal, Vertical and Overhead
-
-
- Fully sealed, 6-sided solid rail extension:
-
-
- Eliminates deflection
- Delivers the smoothest extension movement available
-
-
- Two coated measuring surfaces
- Vial features:
-
-
- 2 Vertical (plumb) vials
- 1 Horizontal (level) vial
- Top horizontal vial – permanently positioned at eye level
- Guaranteed for life never to fog, leak or require adjustments
-
-
- Frame side opposite the stand-offs provides a level measuring surface and straight edge
- Removable end caps
- Certified accuracy in top read position: 1/32″ over 72″
- Plate height dimensions marked on the rail
Specifications:
- Extendable range: 6 ft. to 10 ft.
- Collapsed Length: 72″
- Measurement accuracy:
-
-
- ±1/32″ @ 72″ in normal position
- ±3/64″ @ 72″ in reverse position
- ±1/8″ @ 120″ in extended normal position
-
-
- Number of measuring surfaces: 2
- Magnet system: Recessed Rare Earth
- Profile: Reinforced 2 chamber profile
- End caps: Standard
- Weight: 9 lbs
Replacement parts and optional items – sold separately:
- 20065 Replacement End Caps
- 33100 Replacement Stand-Offs
- 33000 Plate Level Maintenance Kit
- 30045 Level Carrying Case
