Description

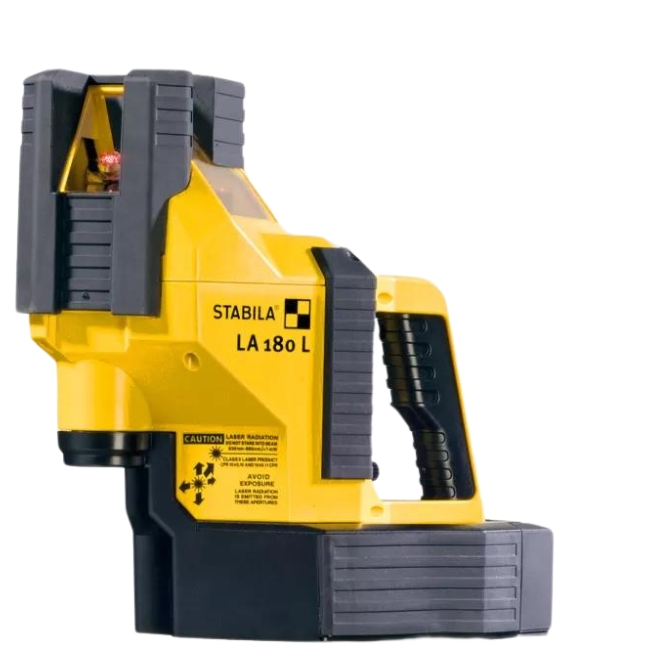

Stabila 02180 LA180L Layout Station with Auto Alignment
The Stabila 02180 LA180L Multi-Line Laser Layout Station with Auto Alignment includes:
- LA180L laser
- 2 – Target plates
- Transceiver with bracket
- 4 – D alkaline batteries
- 1 pair – Laser goggles
- Manual
- Storage case
Features:
- Product no. 02180
- Model no. LA180L
- Self-Leveling
- Plumb Points
- Plumb and Level Lines
- Auto-aligning 90º Layout Lines
- Industry first laser “transceiver”:
-
-
- Transmits it’s location to the to the laser via radio frequency
- Signaling the laser to automatically pivot on “Point A” to find “Point B”
- As soon as this connection is established, the laser locks into position and the transceiver automatically switches to receive mode
- Allowing you to pick it up and move it around the work site as a standard laser receiver
-
-
- Layout lines:
-
-
- Easy to establish
- Can be transferred by just one person
-
-
- Full plane vertical beams cover floors, ceilings and walls
- Generates bright, crisp lines visible to 65 ft. (to 328 ft. with the included receiver)
- Coarse and fine adjustments allow precision alignment of 90º angles
- Slide out battery drawer for battery changes without disturbing the laser reference position
- Servo motor controls self-leveling
Specifications:
- Type: LA180L
- Self-leveling Range: ±5º
- Working Range: Visual 65 ft. (328 ft. with receiver)
- Accuracy Tolerance Level: ± 3/32″ @ 100 ft.
- Accuracy Tolerance Up/Down Beams: ± 3/32″ @ 100 ft.
- Tripod Connection: 5/8″-11
- Battery Life: 20 hours
- Batteries Included: 4 x D alkaline
- Laser Class: 2
- Output: <1 mW
- Laser Wavelength: 635 nm
- Dimensions: 10.5″ x 10.5″ x 6″
