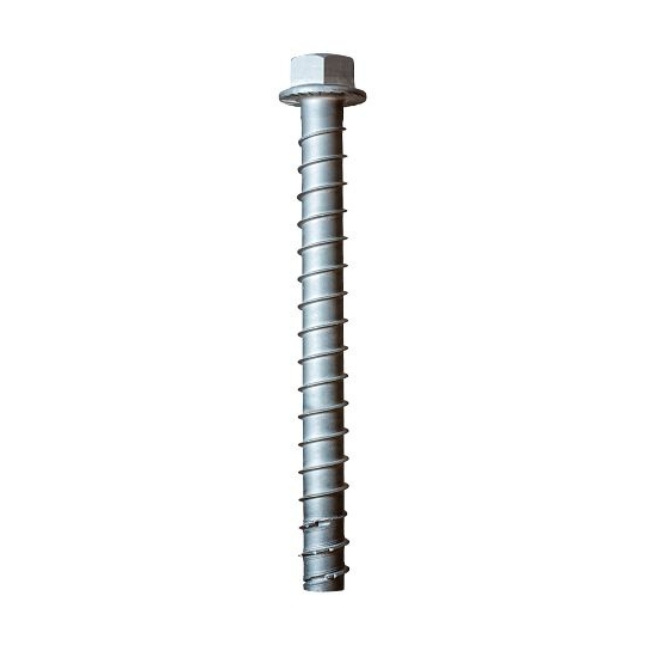

Simpson Strong-Tie THD SS Series Titen HD Screw Anchor Stainless Steel
Simpson Strong-Tie THD SS Series Titen HD Screw Anchor Stainless Steel:
Features:
- Product no. THD Stainless Steel Series
- Material: Type 304 stainless steel
- Diameter: 3/8″
- Best solution for corrosion protection in any kind of:
- Exterior, coastal or chemical environments
- Installs with an impact wrench or by hand tool
- Tested in accordance with ACI355.2, AC193 and AC106
- For use in:
- Concrete
- Masonry
- Serrated carbon-steel threads on the tip of the stainless-steel Titen HD:
- Undercut the concrete as the anchor drives into the hole
- Making way for the rest of the threads to interlock with the concrete
- In order for these threads to be durable enough to cut into the concrete:
- They are formed from carbon steel
- Then hardened and brazed onto the tip of the anchor
- Offers low installation torque and outstanding performance
- Thread design undercuts to efficiently transfer the load to the base material
- Standard fractional sizes
- No special drill bit required:
- Designed to install using standard-sized ANSI tolerance drill bits
- Hex-washer head:
- Requires no separate washer unless required by code
- Provides a clean installed appearance
- Removable – ideal for temporary anchoring such as:
- Formwork, bracing or applications where fixtures may need to be moved
- Reuse of the anchor: will not achieve listed loads and is not recommended
- Codes:
- IAPMO UES ER-493 (concrete)
- ICC-ES ESR-1056 (masonry)
- City of LA Supplement within ER-493 (concrete)
- City of LA Supplement within ESR-1056 (masonry)
- Florida FL15730 (masonry); FL16230 (concrete)
