Description

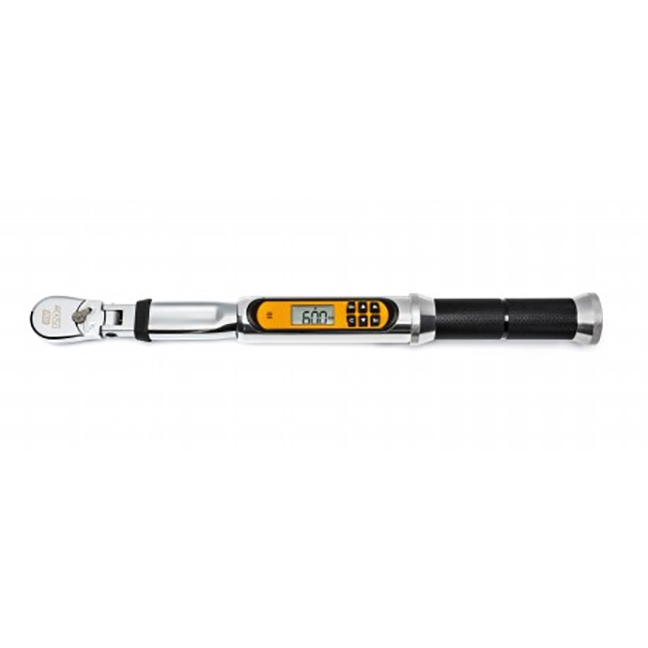

GearWrench 85195 3/8″ 120XP Flex Head Electronic Torque Wrench with Angle – 10 to 100 ft-lbs
The GearWrench 85195 3/8″ 120XP Flex Head Electronic Torque Wrench with Angle – 10 to 100 ft-lbs:
Features:
- Catalog no. 85195
- 120XP™ head
- 3° Ratcheting arc to turn fasteners in narrow spaces
- Low profile tube, 15° flex teardrop head, and flush mounted on/off switch allow for better access in tight confines
- Digitally tracks the following:
- Torque
- Angle measurements
- Vibrating handle, buzzer, and LCD screen alert when target torque reached
- 3 Function Modes for additional versatility:
- Peak torque
- Angle
- Peak angle
- 5 Torque Measurement Units provide readouts in:
- ft-lb
- in-lb
- Nm
- Kg-m
- Kg-cm
- 10 available preset torque settings allow you to quickly access frequently repeated applications
- Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability
- Angle settings offer +/-1% of reading of angle accuracy
- Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
- Meets or exceeds ASME standards and specifications
- Injection molded case with removable lid and EVA foam insert for secure storage and convenience
- 1 year limited warranty; calibration accuracy warrantied for 90 days
Specifications:
- Drive tang size: 3/8″
- Drive type: Square
- Tooth count: 120
- Minimum Torque (Primary Scale): 10 ft-lbs
- Maximum Torque (Primary Scale): 100 ft-lbs
- Primary Scale increments: 0.1 ft-lbs
- Minimum Torque (Alt Scale): 13.5 Nm
- Maximum Torque (Alt Scale): 135 Nm
- Alt Scale increments: 0.1 Nm
- Torque accuracy: +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability
- Overall length: 15.87″
- Head dimensions:
- Length: 2.12″
- Width: 1.3″
- Thickness: 0.55″
- Thickness less Tang: 0.72″
