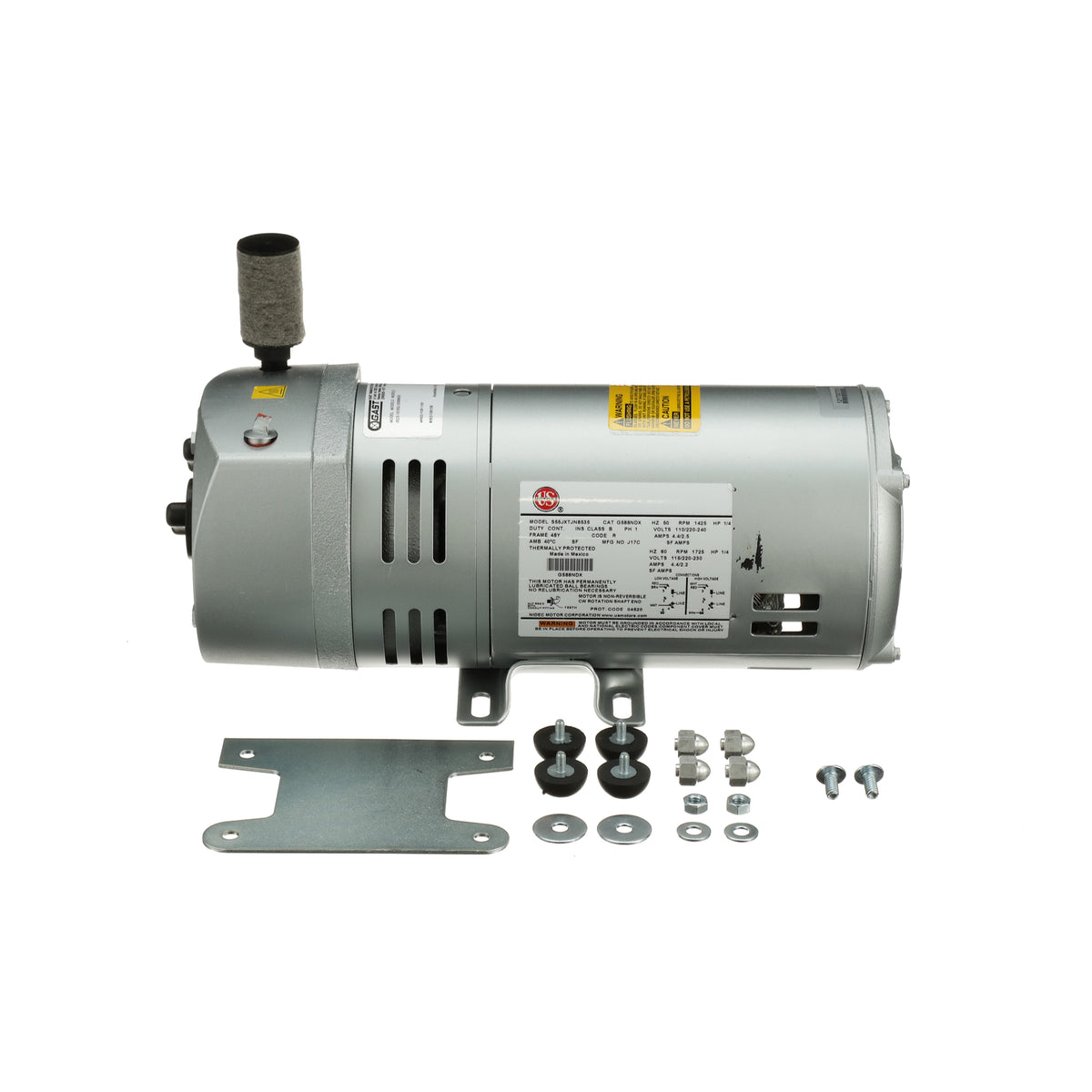

Using 115v 1/4 H.P motor and producing 4.5 C.F.M of air at a maximum 10 psi. The 0523 from Gast can be used in aerobic septic systems from 500G.P.D to 1000 G.P.D. or ponds up to 1 acre in size. The 0523 offers more consistent air flow over a diaphragm or piston pump and normally a longer life as well. these aerators can be rebuilt many times when the vanes wear down and no longer work. They have built-in thermal protection on the motor as well.
The rotary vane design allows for easy maintenance as well as a long life. Rebuild kits are available for this product. This product can be expected to perform for five or more years before it will require a rebuild kit.
Details
- Rotary vane air compressor
- These specifications are results for a system with a 120-volt power source
- Most power providers within the United States provide VAC at 60 Hz
- The highest pressure at which this product can operate continuously is 10 PSI
- The maximum airflow through the outlet of this product is 127 liters per minute
- The noise level of this product will be less than double the average ambient noise within a home.
- Low air pulsation
- Oil free operation
- Thermal overload protection
- Easy maintenance
- K478 Repair kit
-
Voltage Dual Voltage 115/230 Frequency 60 Hz Power Usage 180 W HP 1/4 Rotations Per Min 1725 Max Pressure 10 PSI Max Airflow 92 L/min 0523 Spec Sheet
-
One Year Warranty Covering Manufacturing Defects
